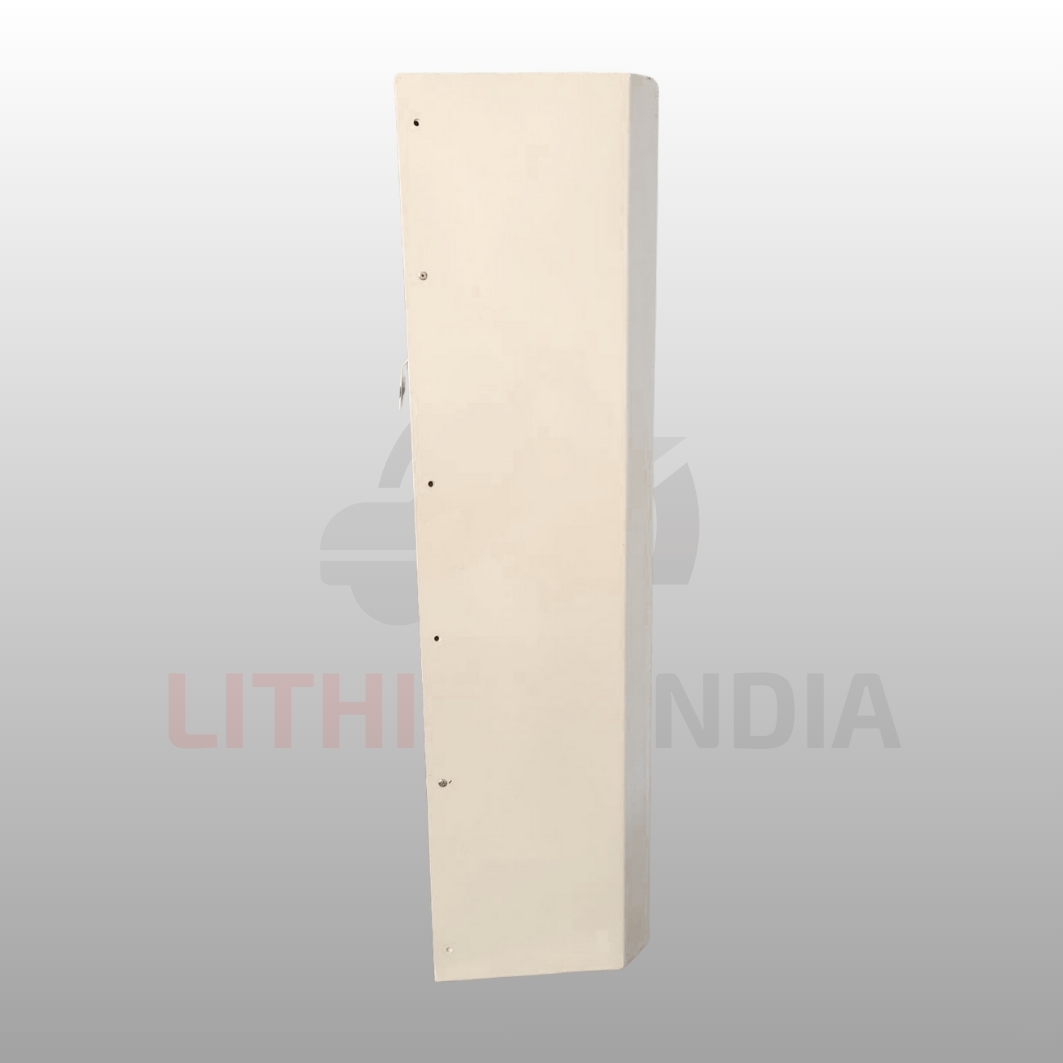

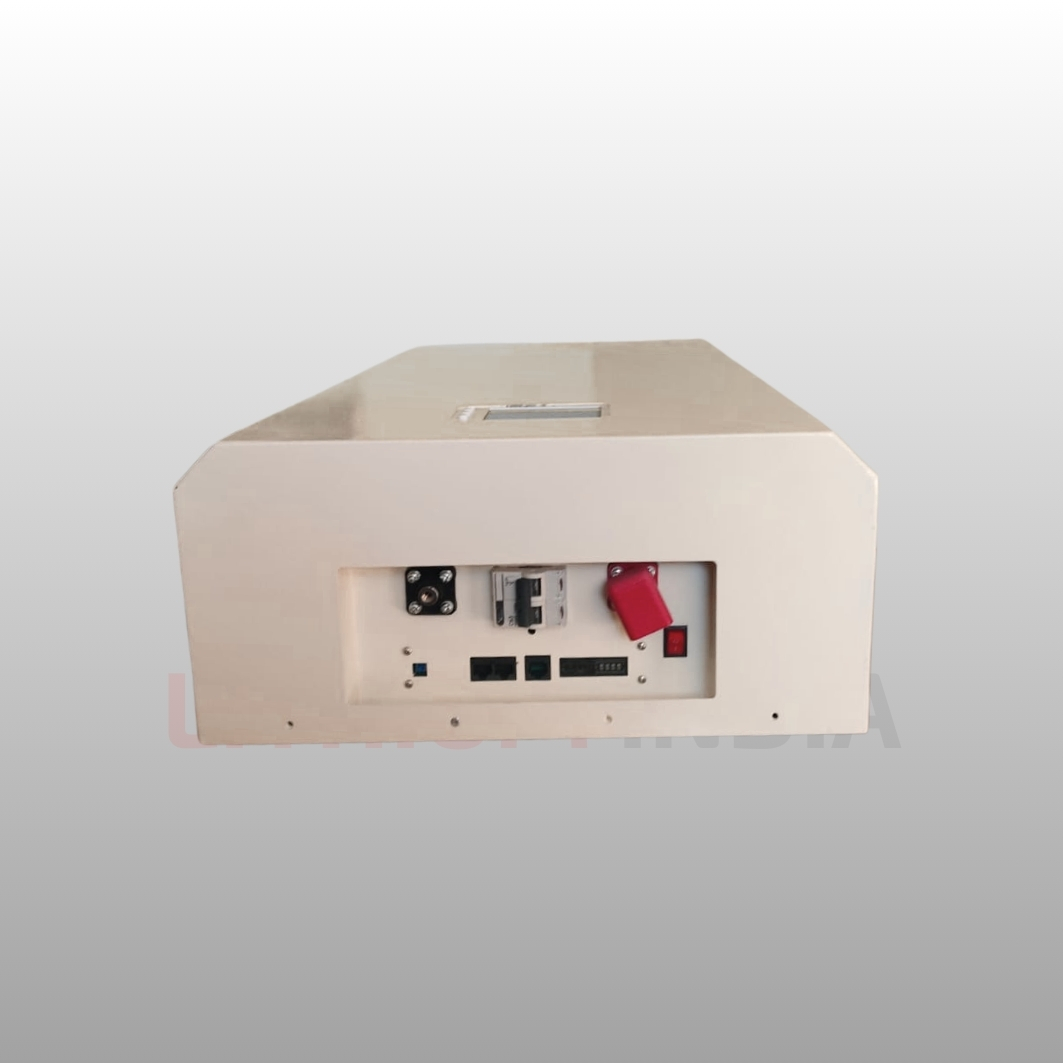

LFP 51V 200Ah Solar Application Hybrid Inverter Battery

High-capacity 51.2 V 200Ah LiFePO₄ (LFP) Solar Battery designed for hybrid inverter systems, solar energy storage, and off-grid/backup power applications. Featuring long cycle life, smart BMS protection, wide temperature tolerance, and compatibility with most hybrid inverters, this battery provides reliable 10.24 kWh energy storage for homes, businesses, and renewable energy systems.

Electrical Specifications

• Operating Voltage Range: ~43.2 V to ~57.6 V (typical)

• Fully Charged Voltage: ~57.6–58.4 V

• Discharge Cut-off Voltage: ~43.2–44.8 V

• Continuous Discharge Current: ~150–200 A (model dependent)

• Max Charge Current: ~100–150 A

• Peak Discharge: Higher short bursts depending on BMS design

---

Battery Management System (BMS)

• Integrated Smart BMS protects against:

  • Over-charge & over-discharge

  • Over-current & short-circuit

  • Temperature extremes

  • Cell imbalance

• Communication: CAN/RS485 (optional monitoring)

• Safety: High-efficiency, low internal resistance for safer operation

---

Cycle Life & Performance

• Cycle Life: >5000–7000 cycles @ ~80 % Depth of Discharge (DoD)

• Operating Temperature:

  • Charge: ~0 °C to +45–50 °C

  • Discharge: ~-20 °C to +55–60 °C

• Self-Discharge: Very low — suitable for long storage periods

• Efficiency: ~98–99 % typical

---

Mechanical & Physical

• Approx. Dimensions: ~650 × 338 × 250 mm (L×W×H) (varies by brand)

• Weight: ~80–90 kg (model dependent)

• Case Material: Metal or heavy-duty enclosure

• Protection Rating: IP56 or better (weather/dust protection)

---

Features & Benefits

• 🔋 Large Energy Storage: ~10.24 kWh of usable energy for solar backup and hybrid inverter use.

• 🔒 Smart Safety BMS: Advanced protection for charging/discharging and cell balancing.

• ⏱️ Long Cycle Life: Designed for thousands of cycles to reduce replacement costs.

• ☀️ Wide Operating Temperature: Performs reliably in diverse climates.

• 🔗 Inverter Compatibility: Works with most hybrid/solar inverter brands supporting 48 V/51.2 V battery input.

• 🔌 Scalable System: Multiple batteries can be connected in parallel for expanded capacity.

• ⚡ High Discharge Performance: Supports higher power draw for loads and inverter demands.
