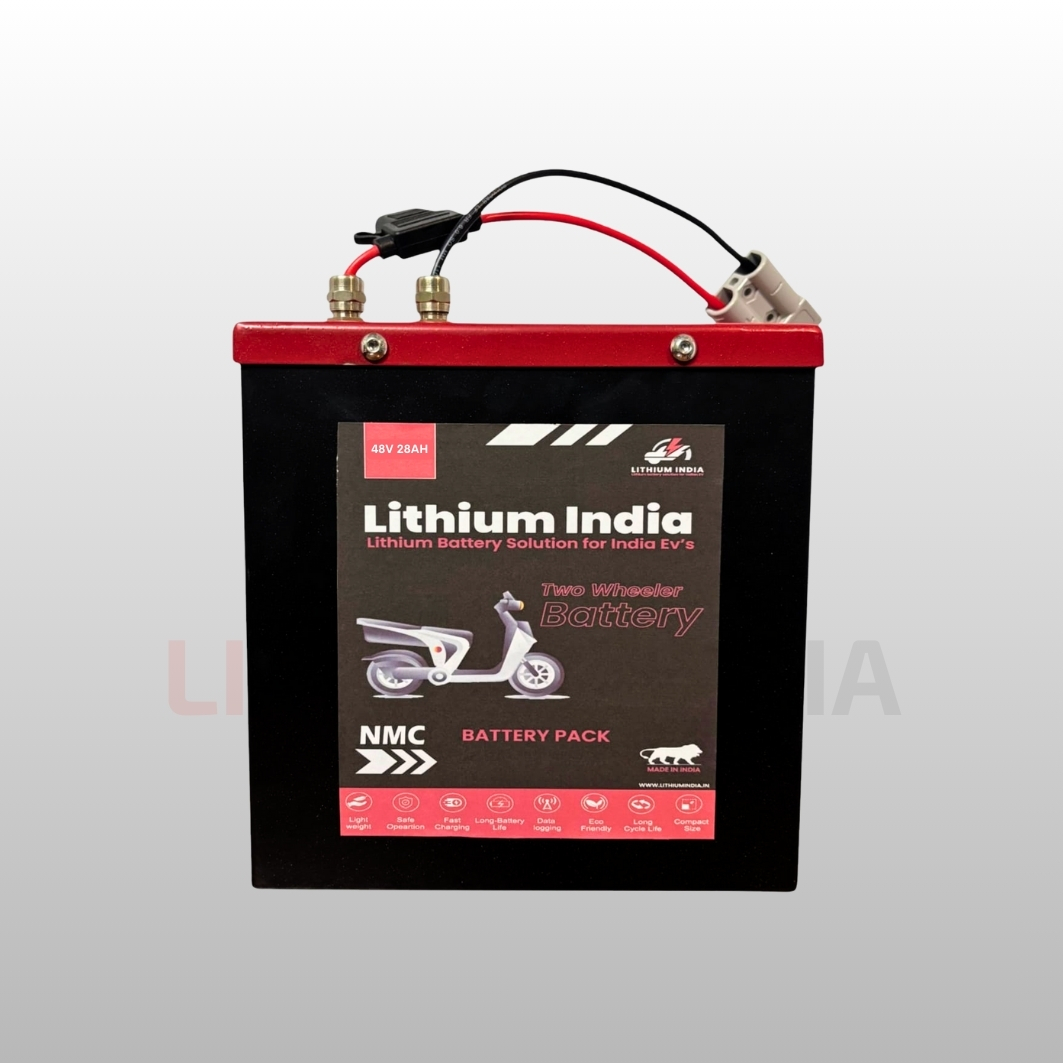

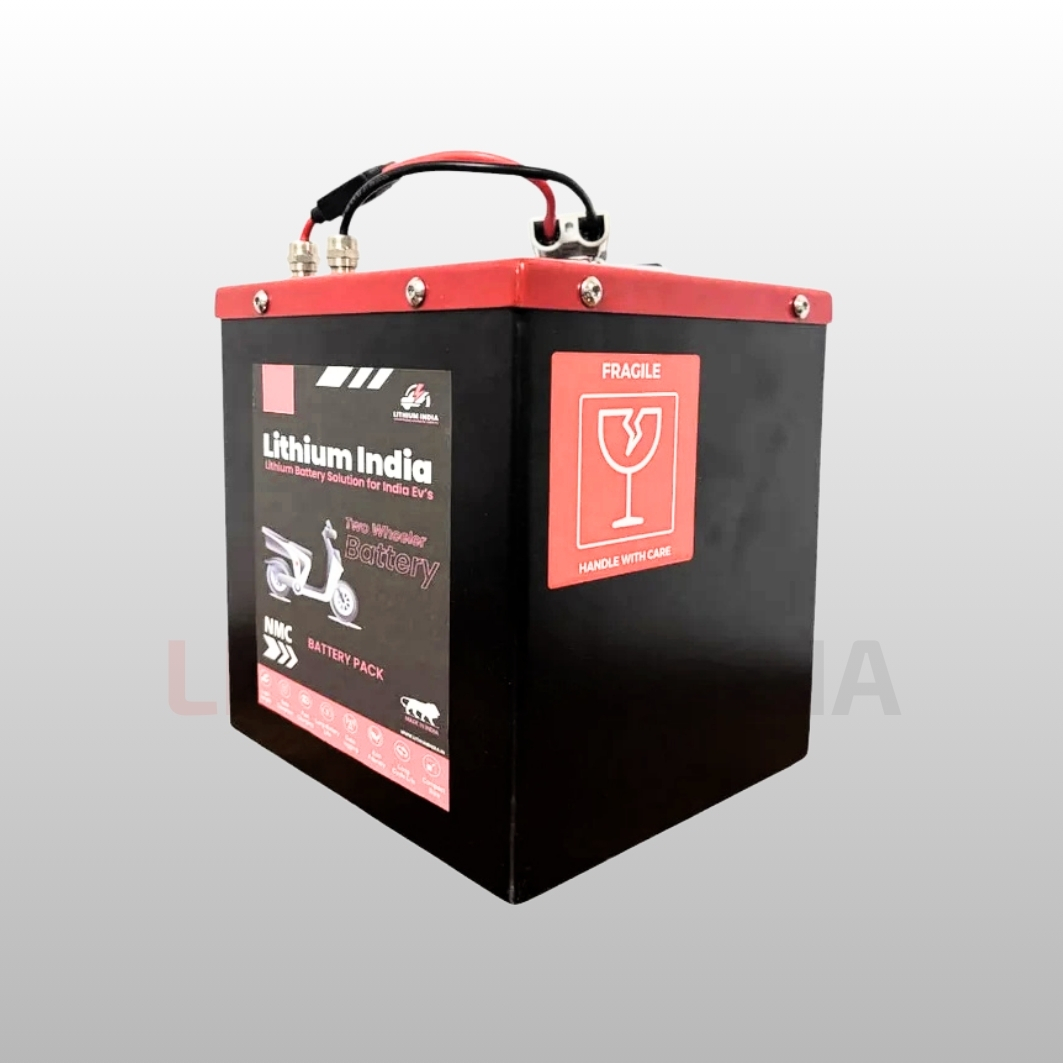

High-performance 48 V 28.2 Ah NMC Lithium-Ion Battery designed for electric two-wheelers and scooters. Engineered for superior energy density, long cycle life, and reliable power delivery with built-in protection via a smart Battery Management System (BMS). Ideal for daily commuting and high-efficiency electric mobility solutions.
Electrical Characteristics
-
Nominal Voltage: 48 V
-
Nominal Capacity: 28.2 Ah
-
Fully Charged Voltage: ~54.6 V (typical for 13S NMC packs)
-
Discharge Cut-off Voltage: ~36-38 V
-
Standard Charge Current: Around 6 A (configurable)
-
Max Charge Current: Up to ~10 A (configurable)
-
Max Continuous Discharge Current: ~30 A (typical for EV use)
-
Peak Discharge Current: ~50-60 A (short duration)
Mechanical & Physical
-
Dimensions: Custom / industry standard pack sizing (mm)
-
Weight: ~9-10 kg (varies with enclosure and connectors)
-
Cell Configuration: Likely 13S x xP (based on similar 48 V packs)
-
Enclosure: Rugged ABS/metal housing with mounting points
-
Connectors: Standard scooter EV connector set
Battery Management System (BMS)
-
Overcharge Protection
-
Over-discharge Protection
-
Over-current / Short-circuit Protection
-
Thermal Protection
-
Cell Balance Management
-
Safety Compliance: Built-in BMS safeguards for longevity and performance
Performance & Life
-
Cycle Life: Approx. 800-1200 life cycles @ 80% Depth of Discharge (depending on usage, temperature, and charge profiles)
-
Operating Temperature (Discharge): Typically -20 °C to +60 °C
-
Operating Temperature (Charge): ~0 °C to +45 °C
-
Storage Temperature: Around -20 °C to +45 °C
These values are based on industry norms for 48 V NMC EV battery packs.
Features & Benefits
-
🔋 High energy density giving longer range per charge.
-
🛡️ Smart BMS for safety and extended battery life.
-
⚡ Lightweight & compact design ideal for electric scooters.
-
🔌 Maintenance-free operation with consistent power delivery.
-
🌍 Eco-friendly alternative to lead-acid batteries in EVs.
